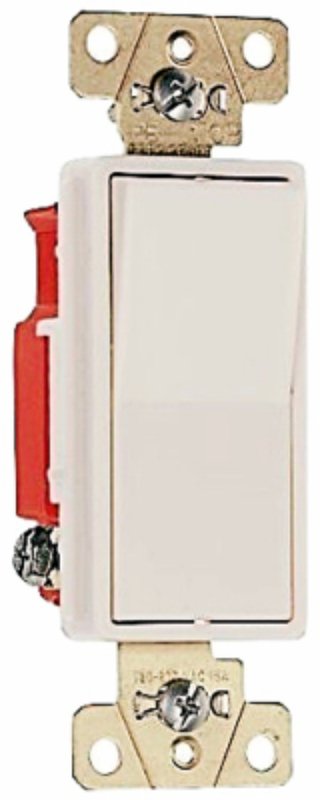

Legrand 2621LACC8 Decorator Switch, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal, Screw Mount

Legrand

Legrand 2621LACC8 Decorator Switch, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal, Screw Mount

$11.49$11.49
Legrand 2621LACC8 Decorator Switch, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal, Screw Mount
  • Color: Light Almond
  • Contact Material: Silver Cadmium Oxide
  • Current Rating: 20 A
  • Dielectric Strength: 1500 V
  • Dimensions: 3.53 in H x 1.3 in W x 1.06 in D
  • Model #: 2621LACC8
  • UPC #: 785007858907
  • SKU: 0254201

Your shopping list will be used for pickup in-store

Product Details

Cushioned thermoplastic paddles assure smooth, quiet long-term use. Integral silver alloy contacts combine with heavy-gauge straps for long-lasting performance. Screw-pressure-plate back wiring (which also supports side wiring) enables fast installation and rock-solid connections.

Key Features

  • Impact-resistant polycarb back body and frame
  • Cushioned thermoplastic paddle assures smooth, quiet, long-term operation
  • Unique single rocking butterfly contact provides long-term consistent performance with significantly fewer moving parts
  • Internal screw pressure plate back and side wire capability for easy installation with #14 to #10 stranded or solid copper/copper clad wire
  • Terminals made of high conductivity brass and serrated for maximum wire gripping
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
  • Auto-ground clip assures a positive ground to metal box
  • Tri-drive ground, terminal and mounting screws
  • All terminal screws are backed-out, ready to install

Item Specifications

ColorLight Almond
Contact MaterialSilver Cadmium Oxide
Current Rating20 A
Dielectric Strength1500 V
Dimensions3.53 in H x 1.3 in W x 1.06 in D
Housing MaterialPolycarbonate
Mounting TypeScrew
Number of Poles1
Operating Cycles10000
Temperature Rating30 deg C
Terminal TypeBack Wire Side Wire
Voltage Rating120/277 VAC
MORE DETAILS:
  • Application: For education, hospitality, institutional, lodging, multiple dwelling, office and retail applications
