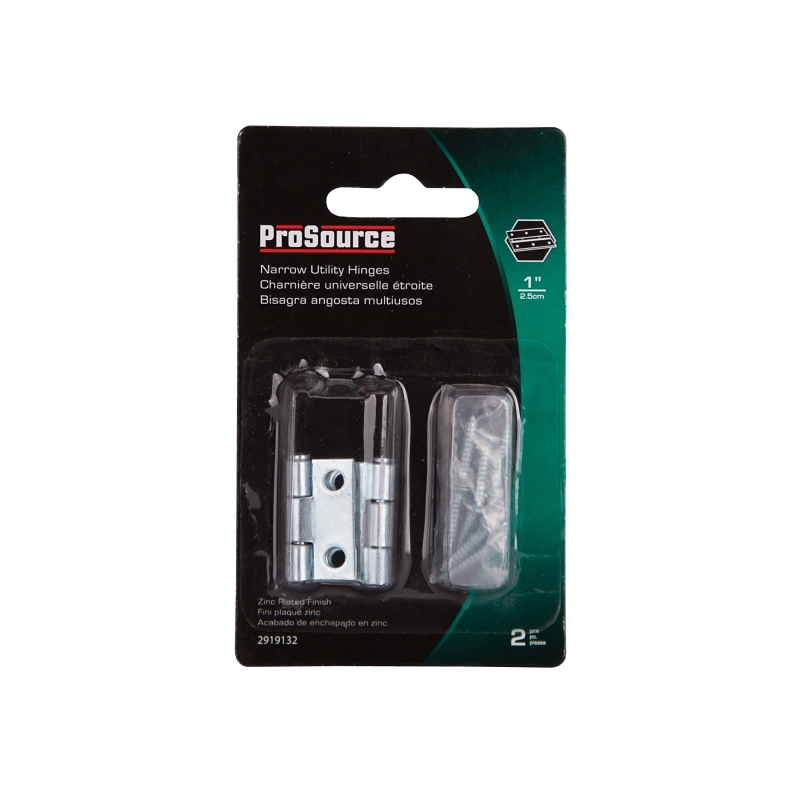

ProSource LR-052-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

ProSource

ProSource LR-052-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting

$3.49$3.49
ProSource LR-052-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting
  • Color: Silver
  • Dimensions: 1 in L x 1 in W
  • Door Leaf Height: 1 in
  • Door Leaf Thickness: 1.3 mm
  • Door Leaf Width: 3/8 in
  • Model #: LR-052-PS
  • UPC #: 045734647367
  • SKU: 2919132

Your shopping list will be used for pickup in-store

Product Details

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a 3 knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.

Key Features

  • Steel with zinc plated finish
  • Square corner
  • Three knuckles, removable pin
  • For general utility use on lightweight doors

Item Specifications

ColorSilver
Dimensions1 in L x 1 in W
Door Leaf Height1 in
Door Leaf Thickness1.3 mm
Door Leaf Width3/8 in
FinishZinc
Hole Spacing5/8 in
IncludesMounting Hardware
Knuckle Diameter3.3 mm
Knuckle Length8 mm
MaterialSteel
Mounting Hole Diameter4 mm
Mounting TypeFull Mortise
Number of Knuckles3
Number of Mounting Holes4
Pin Diameter3 mm
Pin TypeRemovable
Range of Motion180 deg
Suitable forLightweight Doors
Weight Capacity7 (Pair) lb
