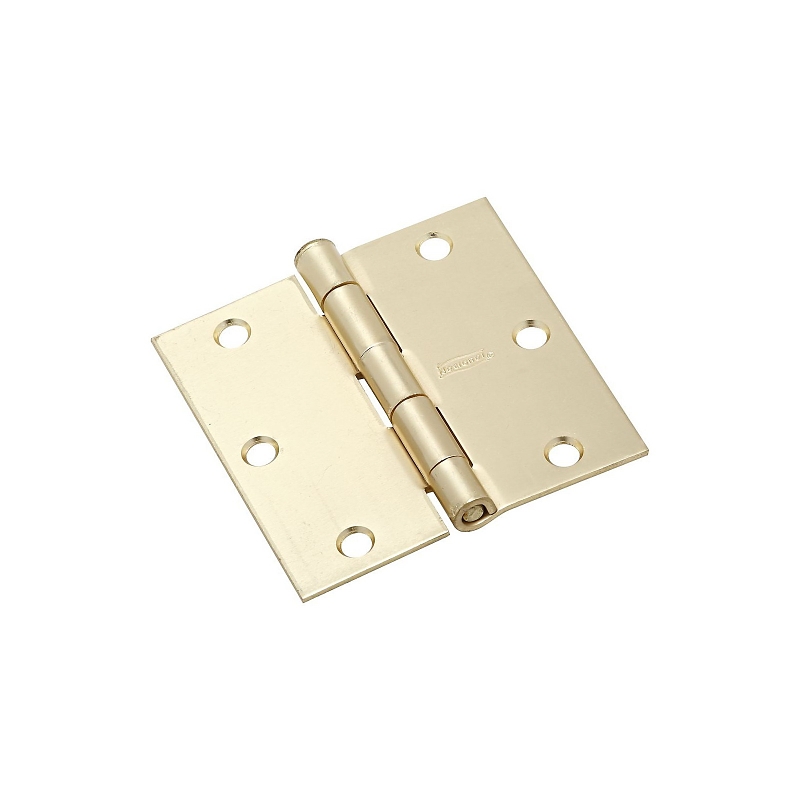

National Hardware N830-332 Square Corner Door Hinge, 3-1/2 in H Frame Leaf, Steel, Satin Brass, Full-Mortise Mounting

National Hardware

National Hardware N830-332 Square Corner Door Hinge, 3-1/2 in H Frame Leaf, Steel, Satin Brass, Full-Mortise Mounting

$12.99$12.99
National Hardware N830-332 Square Corner Door Hinge, 3-1/2 in H Frame Leaf, Steel, Satin Brass, Full-Mortise Mounting
  • Dimensions: 3-1/2 in L x 3-1/2 in W
  • Door Leaf Height: 0.272 in
  • Door Leaf Thickness: 0.08 in
  • Finish: Satin Brass
  • Frame Leaf Height: 3-1/2 in
  • Model #: N830-332
  • UPC #: 886780010251
  • SKU: 7171325

Your shopping list will be used for pickup in-store

Product Details

National Hardware Square Corner Door Hinge, 50 lb Weight, Door Leaf Height: 0.272 in, Door Leaf Thickness: 0.08 in, Frame Leaf Height: 3-1/2 in, Pin Diameter: 0.234 in, Full-Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.272 in, Steel, Satin Brass, Dimensions: 3-1/2 in L x 3-1/2 in W, Includes: (5) Knuckles, #9 Flat Head Screws

Key Features

  • Heavy-gauge cold-rolled steel for added strength
  • Flush pin for finished appearance
  • Countersunk screw holes with fasteners included
  • Removable pin for easy installation and removal

Item Specifications

Dimensions3-1/2 in L x 3-1/2 in W
Door Leaf Height0.272 in
Door Leaf Thickness0.08 in
FinishSatin Brass
Frame Leaf Height3-1/2 in
Includes(5) Knuckles 9 Flat Head Screws
MaterialSteel
Mounting Hole Diameter0.272 in
Mounting TypeFull-Mortise
Number of Mounting Holes6
Pin Diameter0.234 in
Weight Capacity50 lb
MORE DETAILS:
  • Application: For interior residential doors
