Schlage Plymouth Series F60VPLYXGEO716 Combination Lockset, Mechanical Lock, Knob Handle, Round Design, Aged Bronze, Yes

Schlage

Schlage Plymouth Series F60VPLYXGEO716 Combination Lockset, Mechanical Lock, Knob Handle, Round Design, Aged Bronze, Yes

$162.69$162.69
Schlage Plymouth Series F60VPLYXGEO716 Combination Lockset, Mechanical Lock, Knob Handle, Round Design, Aged Bronze, Yes
  • Backset Size: 2-3/8 2-3/4 in
  • Backset Type: Adjustable
  • Bolt Throw Size: 1 in
  • Bolt Type: Mechanical
  • Center to Center: 5-1/2 in
  • Model #: F60GPLY716GEO
  • UPC #: 043156179961
  • SKU: 3374493

Your shopping list will be used for pickup in-store

Product Details

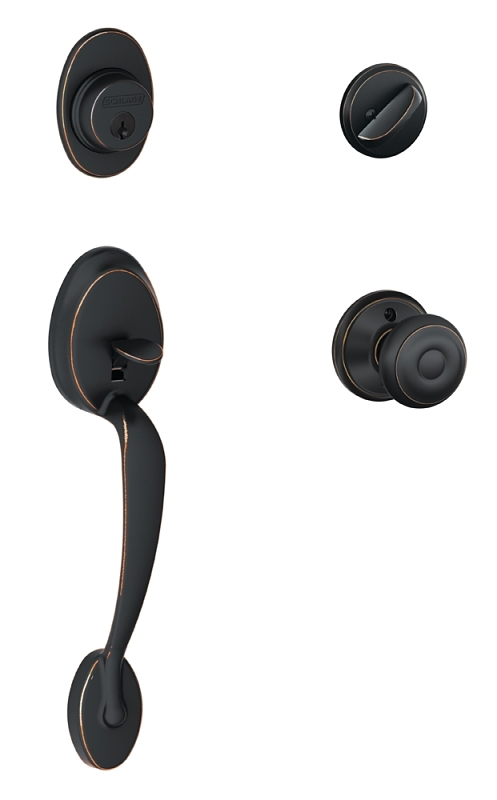

Plymouth handleset with single cylinder deadbolt and Georgian knob in aged bronze.

Key Features

  • One tool installation - installs with just a Phillips® screwdriver
  • Patented through bolt slides up and down so you don't have to patch/redrill your door
  • Graded excellent in residential security, durability and finish
  • Inside trim, levers are zinc-plated to match finishes indicated
  • F Series keying handlesets are 5-pin tumbler with two keys per lock
  • Outside trim, handlesets are solid forged brass, wrought brass trim rings with concealed security inserts
  • The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit

Item Specifications

Backset Size2-3/8 2-3/4 in
Backset TypeAdjustable
Bolt Throw Size1 in
Bolt TypeMechanical
Center to Center5-1/2 in
Commercial/ResidentialResidential
Cross Bore Diameter2-1/8 in
Cylinder Type5-Pin Standard Cylinder
Deadbolt Latch Throw1 in
DesignRound
Dimensions7/8 in
Door Thickness1-3/8 to 1-7/8 in
Edge Bore Diameter1 in
Faceplate Size1 x 2-1/4 in
FinishAged Bronze
Grip Center to Center8-3/8 to 9-7/8 in
Handle TypeKnob
IncludesMounting Hardware
Interior LockingYes
Key TypeKeyed Different
Keyway TypeC
Latch Housing Diameter7/8 in
Latch TypeDeadbolt Latch Spring Latch
Lock TypeMechanical
MaterialMetal
Number of Cylinders1
Overall Height18.06 in
Projection Size1/2 1 in
Re-Key TechnologyTraditional
Security Grade1
Strike Size1.13 x 2.75 in
Strike TypeFull Lip Square Corner
MORE DETAILS:
  • Application: For residential single and multi-family doors
  • Warranty: Limited Lifetime
